Use
The FROG horizontal lifeline combines effortless energy absorption capabilities in each intermediate, end and corner anchor. This inventive approach ensures that our systems are always installed with the maximum energy absorption, regardless of the length of the line.
It ensures the security of maximum 4 workers (maximum 2 per centre distance). It can be installed in straight sections or bends of up to 90°, the maximum distance between 2 intermediaries must be 15 m.
The lifeline can be manual or automatic, on a rigid support (concrete) or lighter structures (metal deck and membrane roof).
The different supports
Characteristics of the components

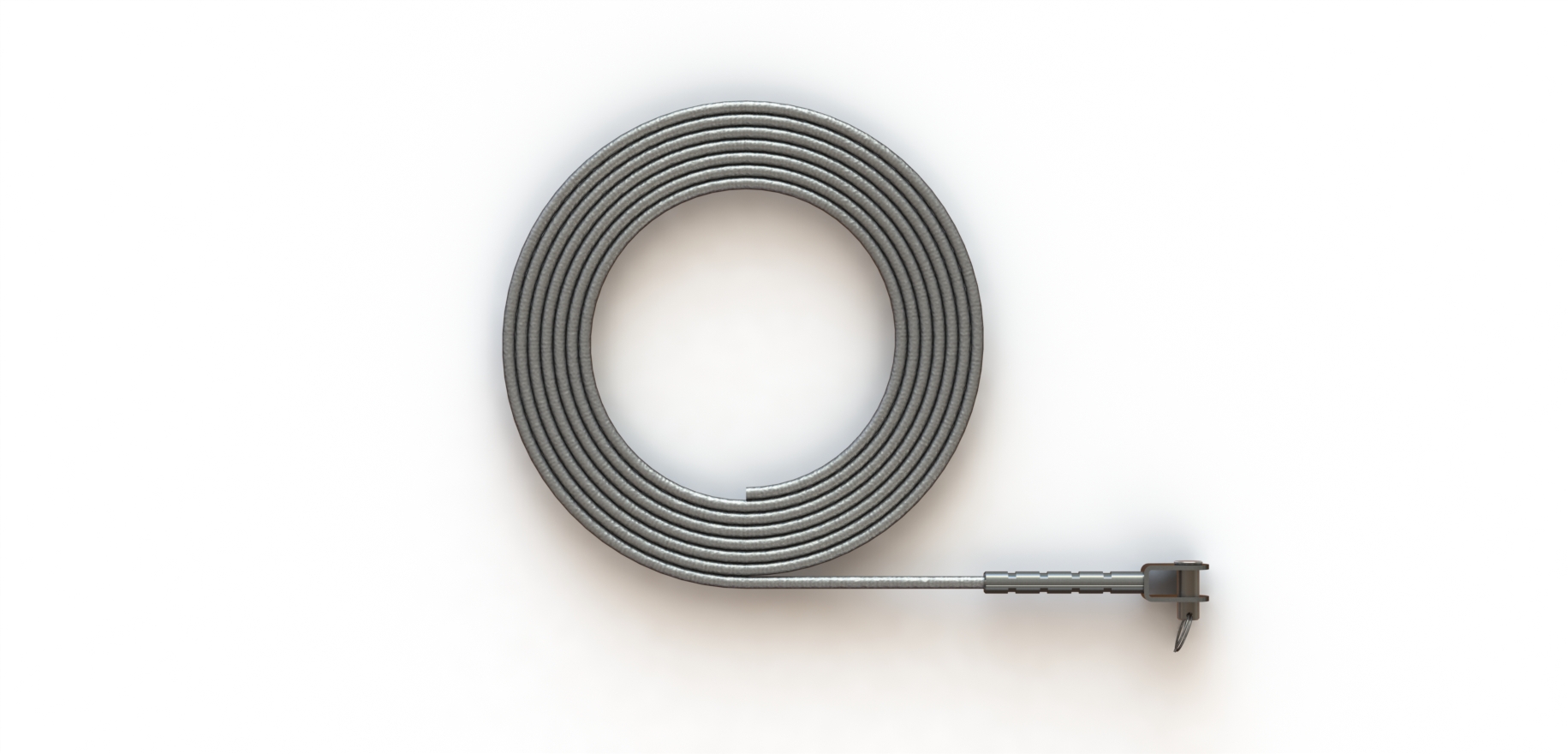

- Cable kit crimped on factory

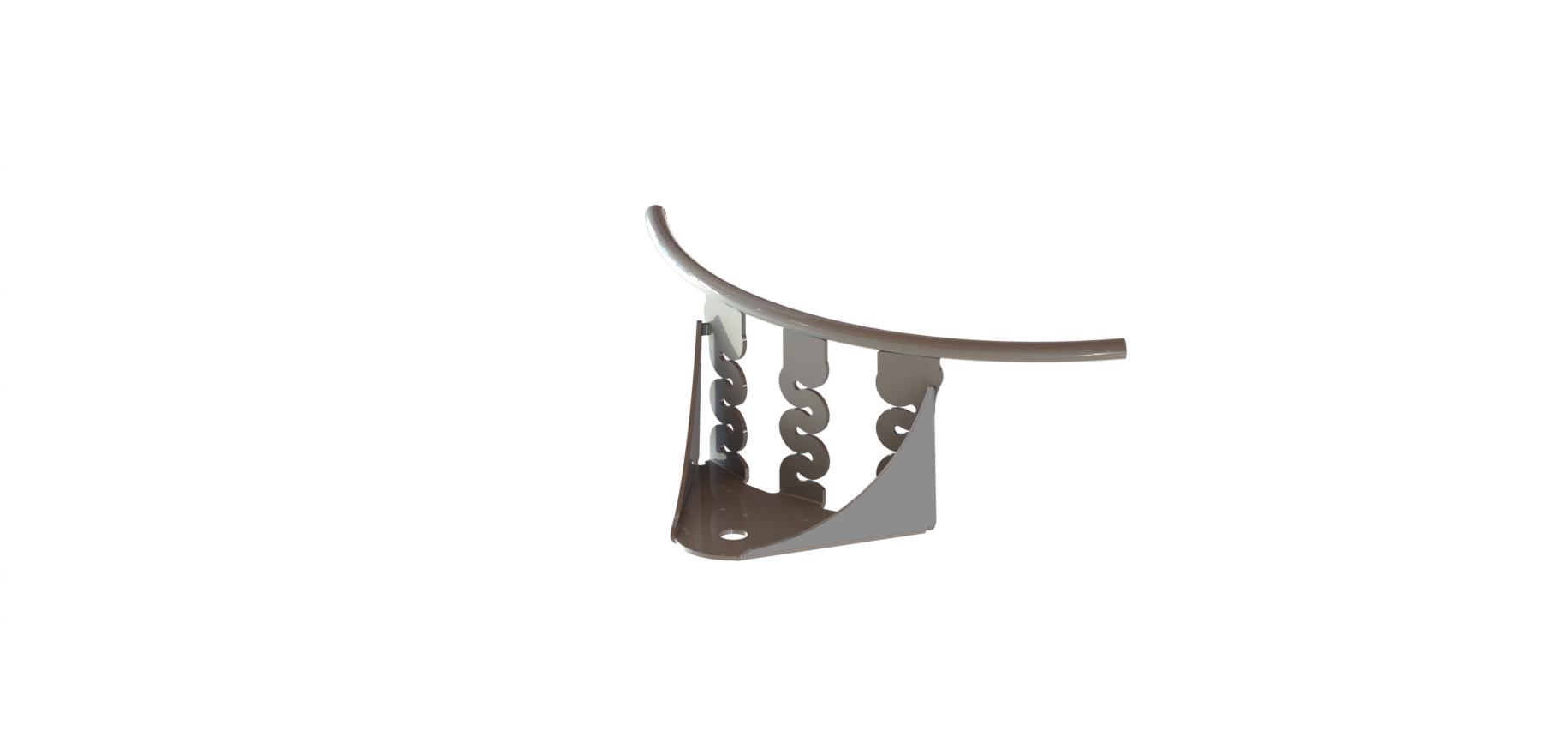

- Deviation disc for wire rope

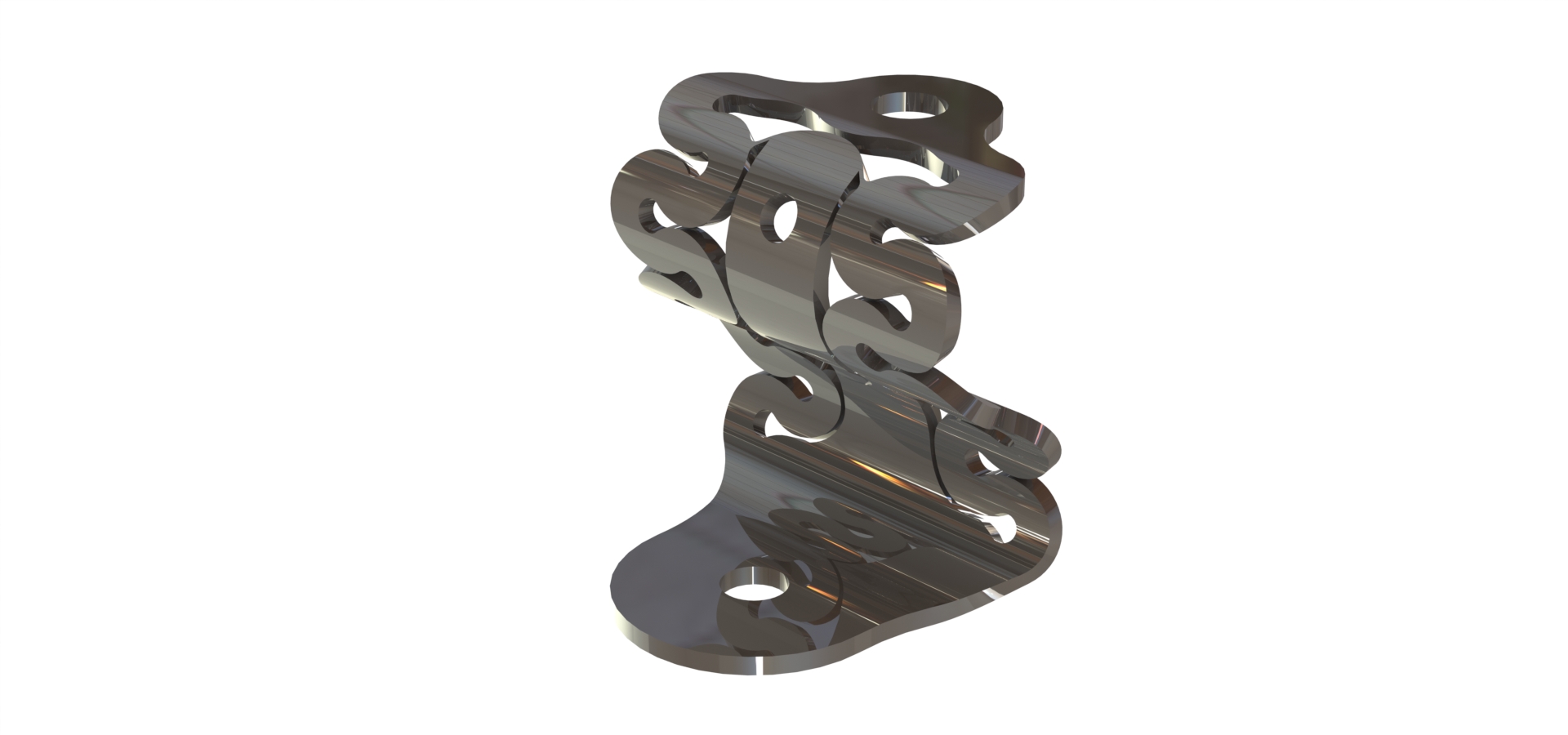

- End plate
- Intermediaite plate
- FROG shuttle

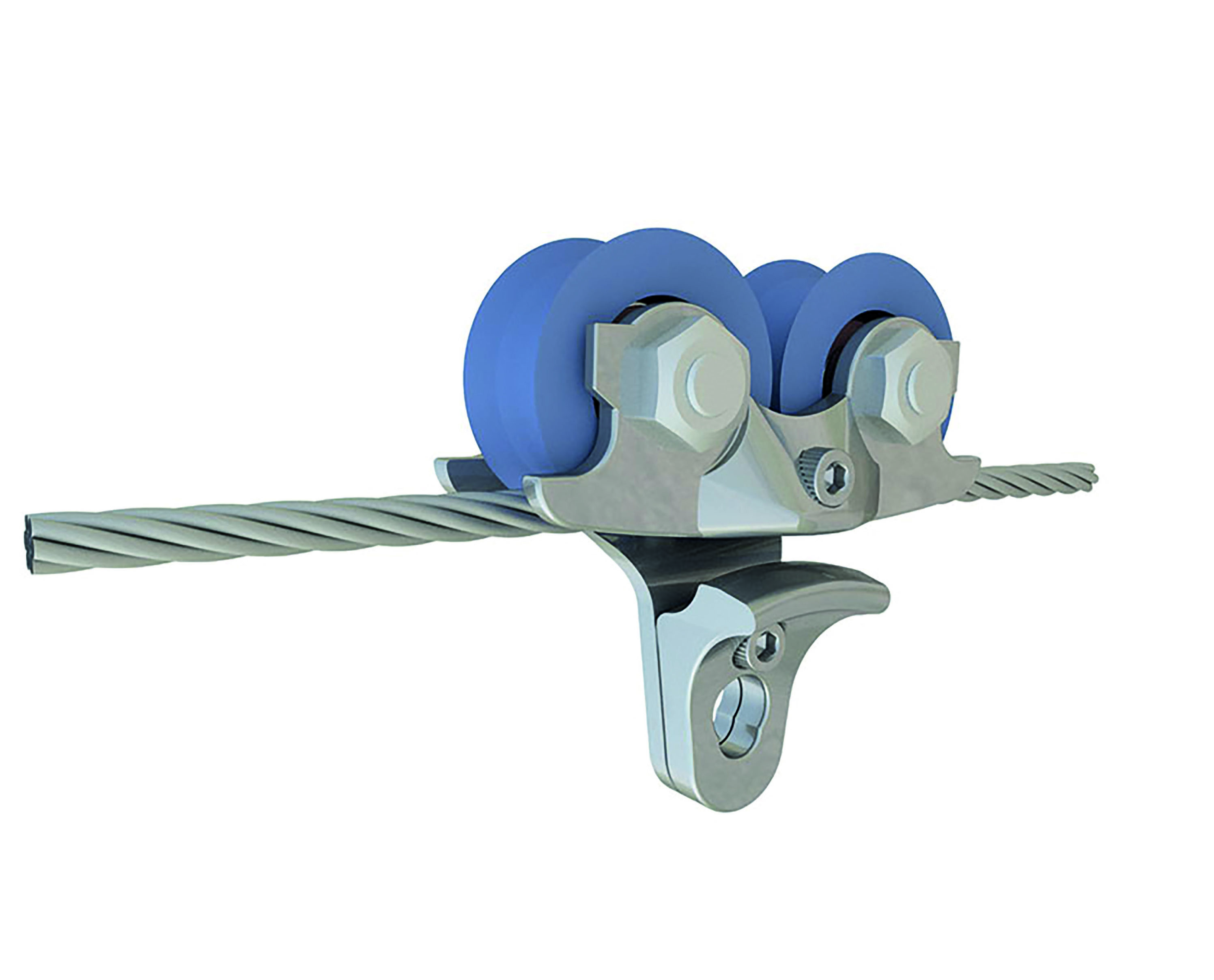

- OVERHEAD shuttle
- Ending a to be crimped on site

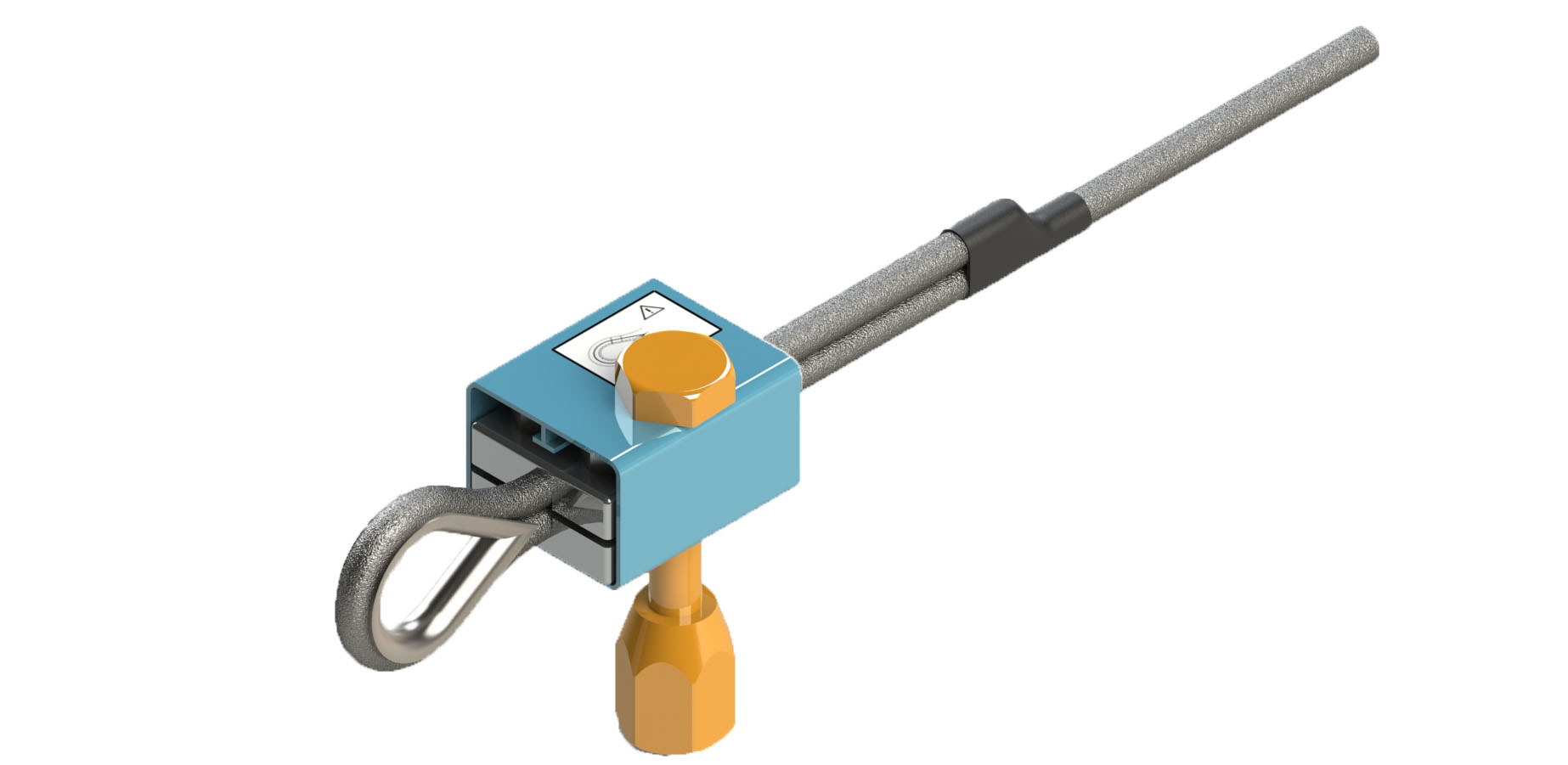

- Manual rope clamp kit + Numbered seal

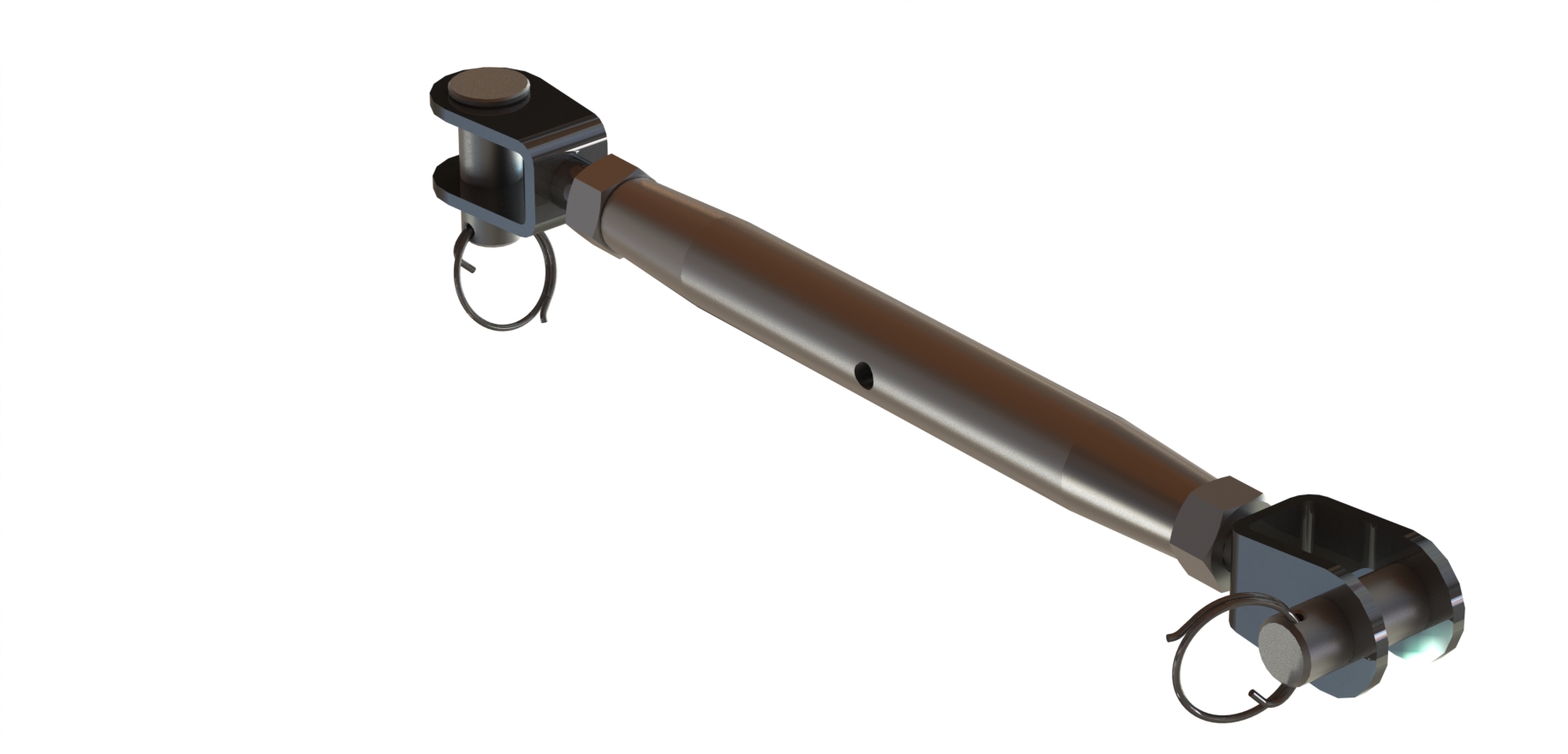

- Stainless steel turnbuckle adjuster
