USE

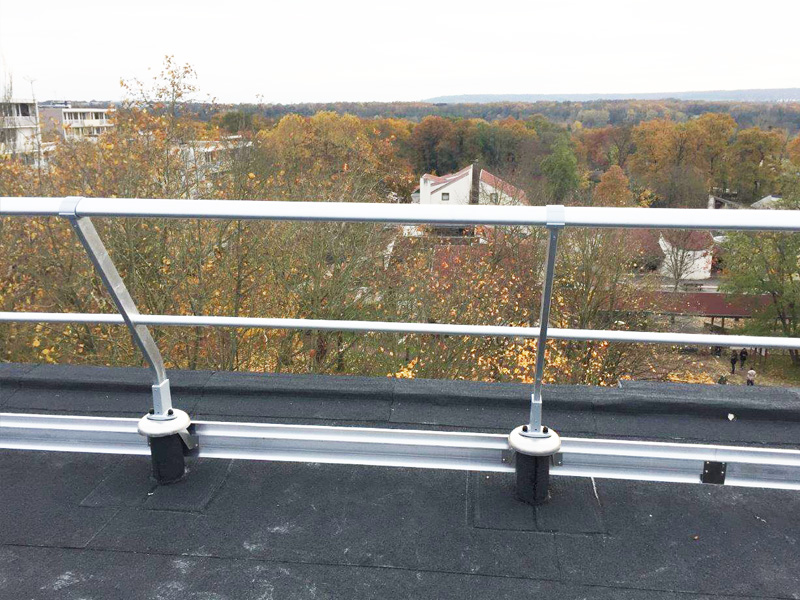

The VBE Vectaco® guardrail is a collective fall protection system designed to protect roofs that are not accessible to the public. Its BE roof anchor post is fixed through the waterproofing complex on the metal deck. Its design allows a simple and fast installation.

Technical features

  • – Material : aluminum
  • Material finishes : raw, anodized or powder coated on request (ral colors)
  • Components :  triangular handrails, round knee rails ø35 mm, tubes with swaged ends and adjustable angle for handrails and knee rails.
  • Assembly : with HC screws and self-drilling screws with a provided Torx T25 bit
  • Fixing : with 8 self-drilling screws DBS2
  • Max spacing between uprights : 1500 mm
  • Standard : EN ISO 14122-3 : 2016
