USE

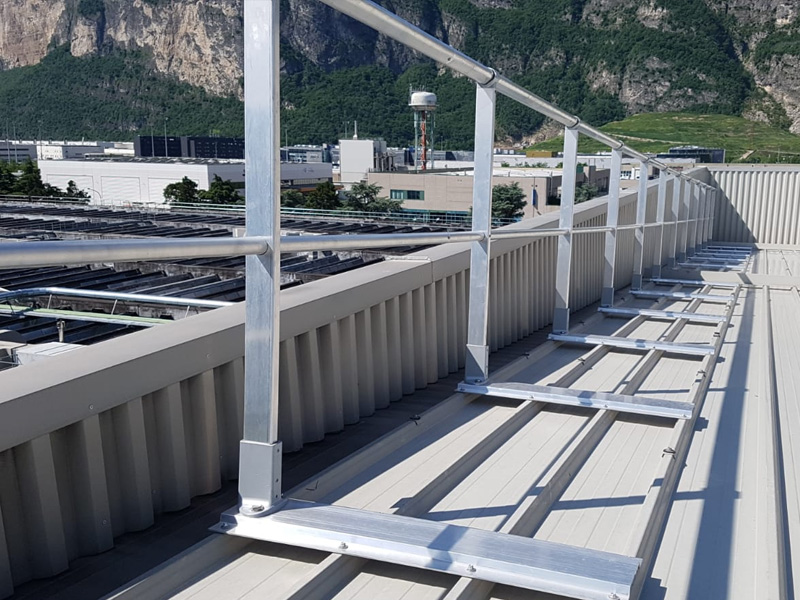

The VECTACO® guardrail on metal deck is a collective fall protection system designed for the protection of metal deck with a slope of less than 10°. It is expected to be used on metal deck with flute spans 250 mm or 330 mm and a thickness of 0.63 mm mininum (other dimensions consult us).

TECHNICAL FEATURES

  • Material : aluminum
  • Material finishes : raw, anodized or powder coated on request (ral colors)
  • Components : triangular handrails, round knee rails ø35 mm, tubes with swaged ends and adjustable angle for handrails and knee rails.
  • Assembly : with HC screws and self-drilling screws with a provided Torx T25 bit
  • Fixing : with 6 or 8 self-drilling screws DBS2
  • Max spacing between uprights : 1500 mm on flute spans 250 mm and 1666 mm on flute spans 333 mm
  • Standard : BS EN ISO 14122-3 : 2016.
