Use

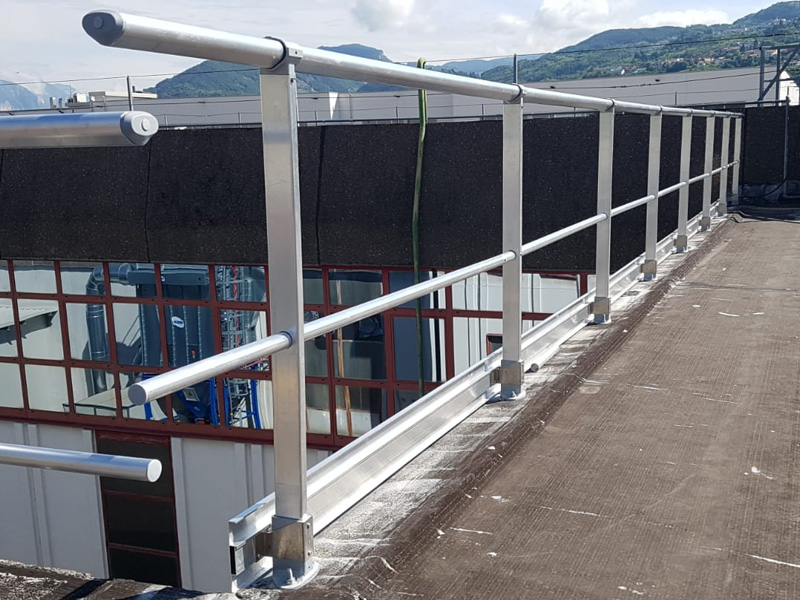

The VS VECTACO® Guardrail mounts flat (French style fixation) on a metal structure, on a wall parapet, on a concrete wall or on a concrete slab without sealing. The floor fixture system remains the more economical solution to secure the roof deck.

Specifications

  • Material : aluminium
  • Material finishes : raw, anodized or powder coated on request (RAL colours)
  • Components : triangular handrails, round knee rails ø35 mm, tubes with swaged ends and adjustable angle for handrails and knee rails.
  • Assembly : with HC screws and self-drilling screws with a provided Torx T25 bit
  • Fixing : 2 x M10 plugs (in option)
  • Max spacing between uprights : 1500 mm
  • Standards: BS EN ISO 14122-3 : 2016
