Ladder crinoline

Request an estimate

Use

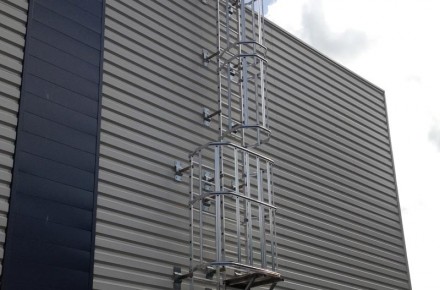

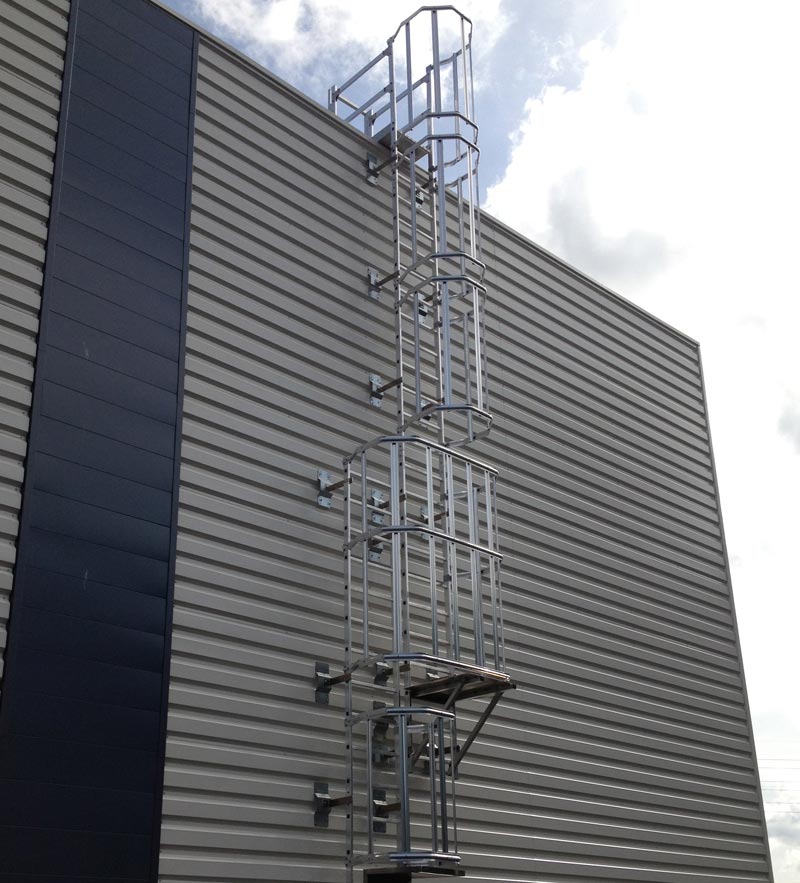

The cage ladder aluminum VECTALADDER ® is a device giving access in height zones to authorized staff. With a width of 600 mm, the safety cage ladder VECTALADDER ® is a wider market and that allows an optimal confort of use.

Technical features

  • Material : aluminium
  • Uprights : 65 x 24 mm
  • Nonslip rungs : 30 x 30 mm sertis
  • Overall ladder width : 600 mm
  • Spacing between rungs : 280 mm
  • Fastening clips for quick set-up of safety bows
  • Standard fastenings, possible offset of 205 à 750 mm, installation possible by fixation plates on metal deck.
  •  Other available equipment : landing steps (4 standard models), exit landings
    (3 standard models), seld-closing gates, safety doors and trapdoors
    (4 standard models), changing flights and side exit
Documentation
Fichier PDFTechnical data sheet 012 – VECTALADDER® cage ladder
