- References
- 03099
- 03100
- 03099
- Width*
- 600 mm
- 800 mm
- Lenght*
- 3000 mm
- 3000 m
- Weight
- 14 kg/ml
- 16 kg/ml
*Other dimensions on request
Use

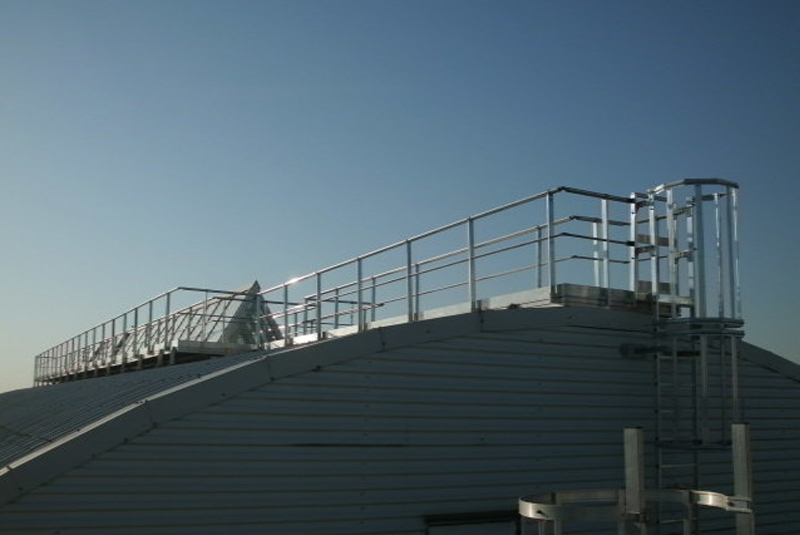

The entire bridge VECTAWAY ® allows to move on fragile and slippery roofs safely.
Technical features
- Material : aluminium 6063 T5
- Centre distance of fixation : 2 to 3 m according to configuration
- Specific centre distance : please contact us
- Fabrication compliant with the European standard EN 14122-2 & NF E85-014
- Models available in 600 or 800 mm wide (other widths on request)
- The VECTAWAY® gangway can be equipped with guardrails VECTACO® aluminum (handrail + middle rail + toeboard) on 1 or both sides
- Safty gate (Réf. : 01128) adapt to the guardail
- Fixation on metal deck, asbestos cement, standing seam roof or any type of support upon request
- The installation of guardrails and fixation supports are simplified by the use of screw head hammer in the side throats of the silt
Documentation
VECTAWAY Gangway components :
Fixation plate on metal deck, self-drilling screws inox + chimney washers
Réf : 03231
Asbestos cement fastening
(with volting)
Réf : 0733502
Traverse joint fastening
(with volting)
Réf : 01834
Junction plate
(with volting)
Réf : 0733504
Angle kit 600 mm
Ref : 03136
Angle kit 800 mm
Ref : 03140
Guardrails on two sides
lg 3000 mm (forstraight gangway)
Réf : 0733506

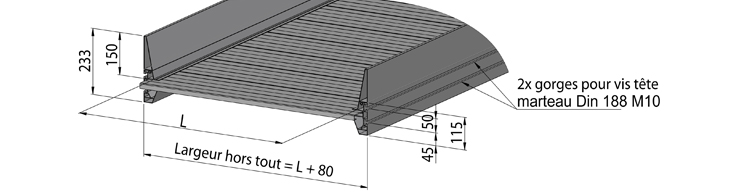

Profile
Toaboard
Striated base
L = 600 ou 800 mm
