REFERENCES

On concrete slab to be sealed with D-shape roof anchor post:

  • Models
    • Handrail+knee rail
    • handrail+knee rail+toe board
  • Straight
    • VSD-D2
    • VSD-D3
  • Inclin.
    • VSD-I2
    • VSD-I3
  • Curved
    • VSD-C2
    • VSD-C3
  • Folding
    • VSD-R2
    • VSD-R3

On concrete slab to be sealed with DS  roof anchor post:

  • Models
    • Handrail+knee rail
    • hand.+knee rail+toe board
  • Straight
    • VSDP-D2
    • VSDP-D3
    • .
  • Inclin.
    • VSDP-I2
    • VSDP-I3
    • .
  • Curved
    • VSDP-C2
    • VSDP-C3
    • .
  • Folding.
    • VSDP-R2
    • VSDP-R3
    • .

Request an estimate

Use

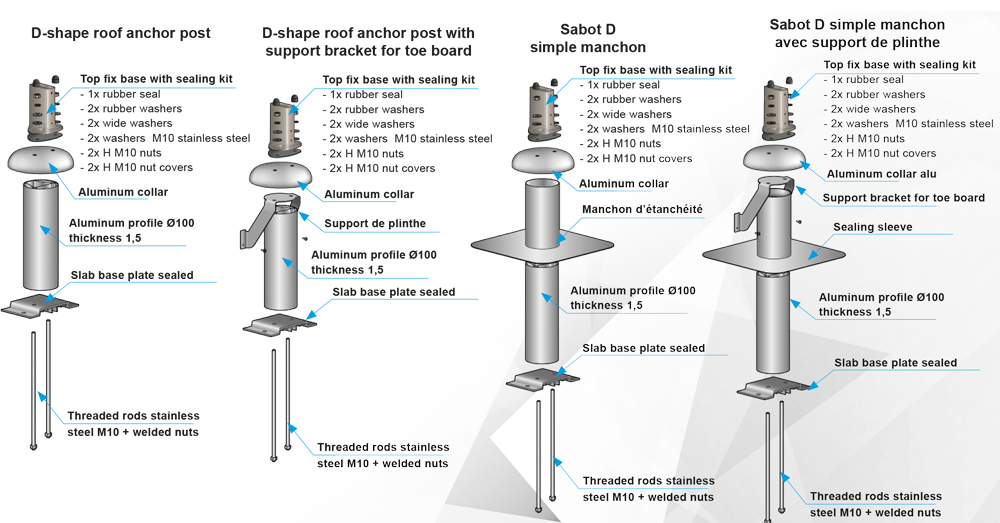

The VECTACO® VDE or VDS guardrail can be fixed on the concrete slab through the waterproofing complex thanks to its D or DS roof anchor posts. These posts are tailor-made and comply with DTU 43.1 waterproofing standards of the roof decks.

TECHNICAL FEATURES

  • Material : aluminum
  •  Material finishes : raw, anodized or powder coated on request (ral colors)
  •  Components : triangular handrails, round knee rails ø35 mm, tubes with swaged ends and adjustable angle for handrails and knee rails.
  • Assembly : with HC screws and self-drilling screws with a provided Torx T25 bit
  • Fixing : 2 anchors M10 / concrete
  • Max spacing between uprights : 1500 mm
  • Standard : BS EN ISO 14122-3 : 2016

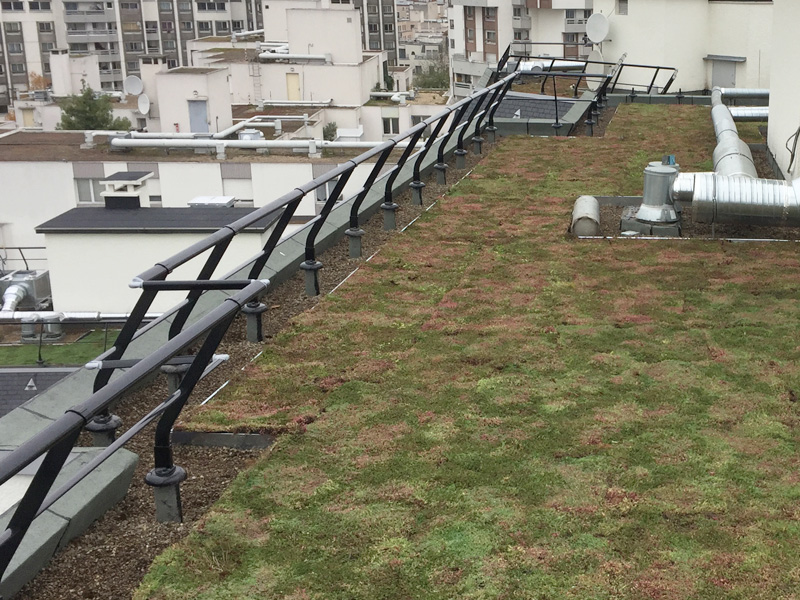

Different OPTIONS : support bracket for toe board and sleeve
