USE

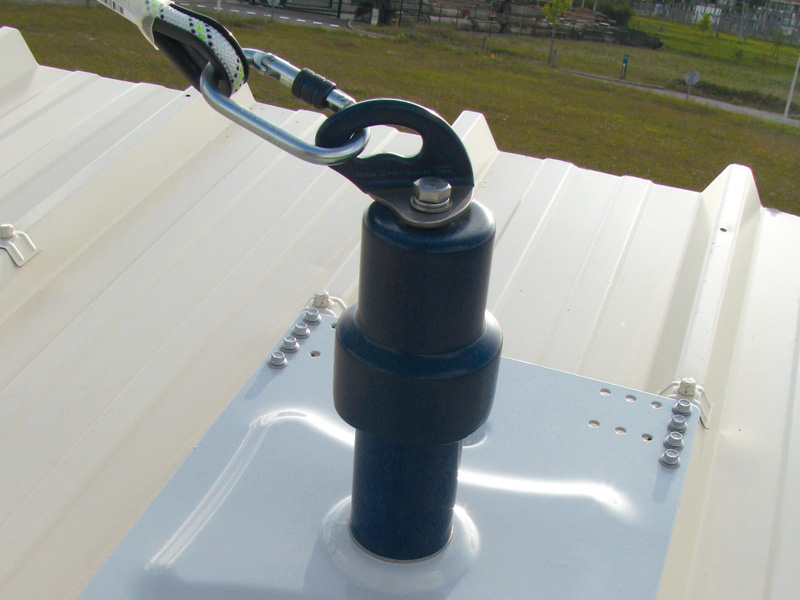

The VECTASAFE® anchor post for metal decks is an anchor device equipped with a rotating head, used on deformable light structure. Its support has a pre-defined hole in the direction of the metal deck waves to facilitate its fixing. The anchor post is compatible on metal decks with flute spans 250 or 333 mm with 0,63 mm minimum thickness.

Fixing

  • Self-drilling touting : Screw drillnox DBS2 6×25 – Ref :  LVF01
  • Rivet mounting : Through sealing rivets – Ref : LVF02

Advantages

  • Anchor post compatible with our VECTALINE® lifelines
  • Pre-drilling according to the waves of the metal decks
