Use

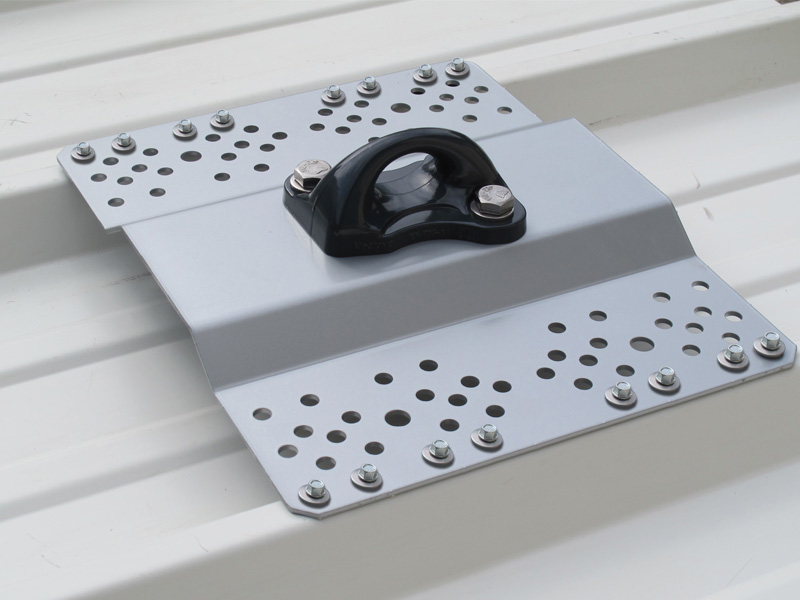

The VECTASAFE® aluminium anchor plate for metal decks has been specially designed to be fixed on metal decks with flute spans between 210 and 330 mm. Its ring directly allows the hooking of the carabiner connector. This system consists of an anchor point delivered on a gray lacquered galvanized steel mouting plate. It can be used on a single metal deck with a minimum thickness of 0.63 mm, on a roof whose slope is less than or equal to 25°.

Fixing

Fixing is carried out using 16 Drillnox screws DBS2 with sealing washers and bowl washers supplied with the plate.
