- Reference
- VL1200
- VL1700
- VL2200
- VL1200
- Skylight dimensions
- 1200 x 1200 mm
- 1700 x 1700 mm
- 2200 x 2200 mm
- Guardrails dimensions
- 1500 x 1500 mm
- 2000 x 2000 mm
- 2500 x 2500 mm
Documentation
Use

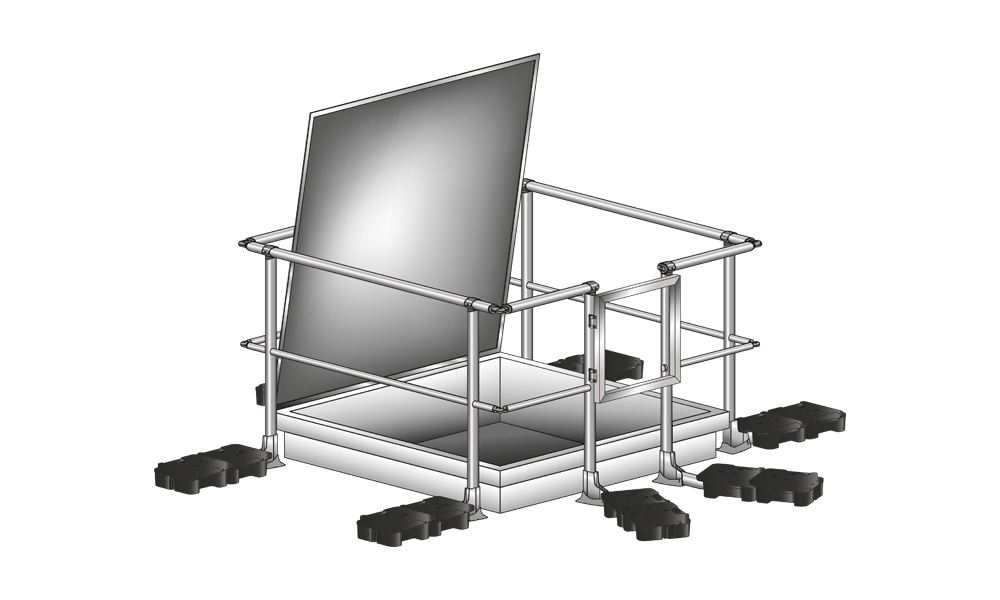

The VECTACO® skylight protection is used as a peripheral protection for any type of skylight. The resilient pads and the counterweights preserve the roof membrane water tightness. Each upright is stabilized by two counterweights. Delivered in a kit.
TECHNICAL FEATURES
- Material : aluminum
- Material finishes : raw, anodized or powder coated on request (ral colors)
- Components :
– Counterweight (2 per each upright) : 12.5 kg each
– Optional self-closing safety gate
– Handrail/knee rail with swaged end and push-on tubes - Height of the guardrail : 1180 mm
- Assembly : with HC screws and self-drilling screws with a provided Torx T25 bit
